144MHz Band Pass Filter

144MHz Band Pass Filter

Regular price $20.00 USD
Regular price Sale price $20.00 USD
Sale Sold out

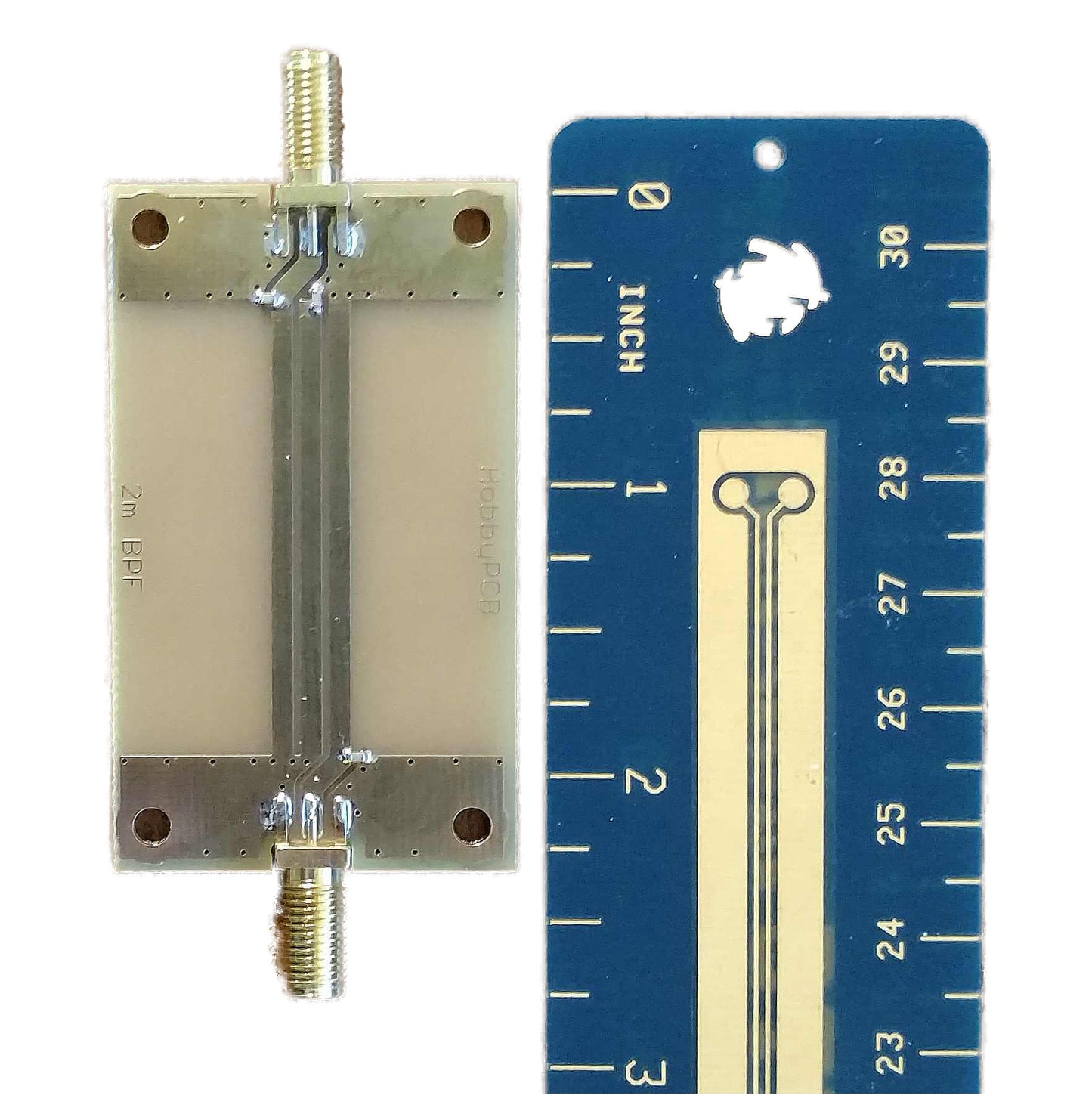

Cost effective bandpass filter suitable for RX and TX application up to 20W. Microstrip design constructed on FR-4 board with gold plating for low insertion loss.

Uses:

  • Before and after LNA's to reject out-of-band signals
  • TX output harmonic rejection for transmitters, transceivers and transverters
  • IF filtering for microwave transverters

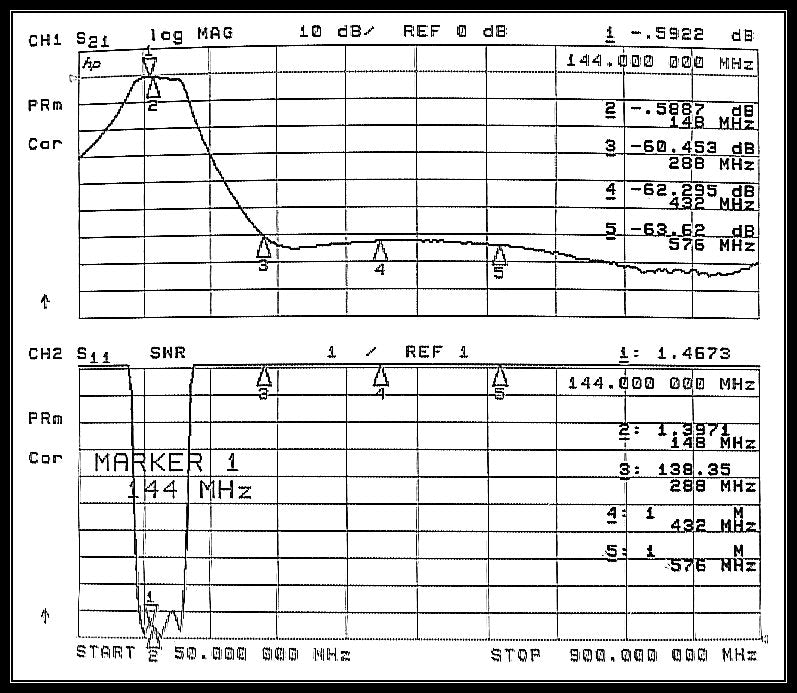

144 Filter Specs:

Insertion Loss: < 0.7 dB 144-148 MHz

Rejection: < -50 dB @ 288 - 900 MHz, < -20 dB @ 100 MHz

Power: 20W max.
Connectors: SMA
